    VX4000

    • Introduction
    • Specification
    • Download

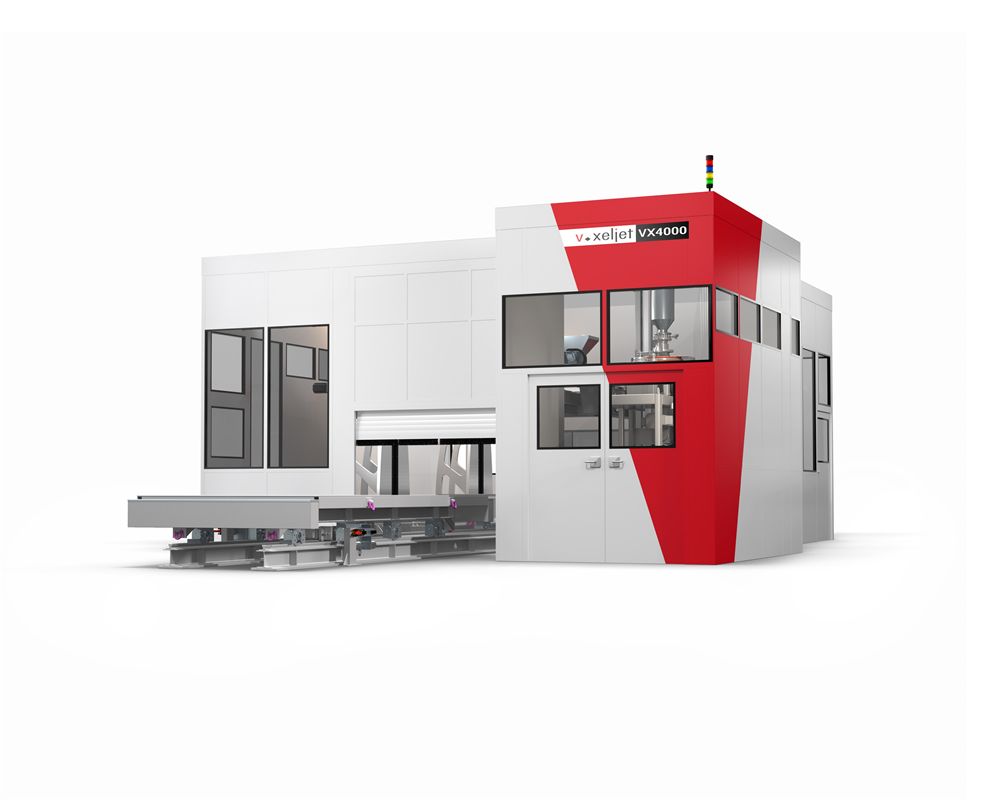

    The VX4000 is the world’s biggest 3D printing system for sand molds. With a total jobbox size of 4 metres in length, 2 metres in width and one metre in height, this system can produce large individual molds as well as numerous small series components. A combination of the two is also possible quickly, economically and flexibly. With its unique volume, the VX4000 is the largest, most productive printing system in the VX product portfolio.

    l   Economical and flexible: The VX4000 prints small numbers of large molds, or very large numbers of small molds.

    l   The world's largest jobbox size for sand moulds: For very large individual molds or several small series components.

    l   Easy to operate: Fully automated production based on CAD data.

    l   Perfect for all industrial applications with high volumes.

    l   Unique printing process: For maximum capacity utilisation and productivity.

    l   Precise resolution of up to 300 dpi.

    l

    Specifications

    System Dimensions

    L 19,000 x W 9,300 x H 4,300mm

    Installation Space

    L 24,000 x W 16,100 x H 4,500mm

    Weight

    N/A

    Process

    Sand

    Build Space

    L 4,000 x W 2,000 x H 1,000mm

    Print Resolution

    300 dpi

    Ambient temperature

    22 ± 2 ℃

    Rel. humidity

    55 ± 5%
