    VX1000

    • Introduction
    • Specification
    • Download

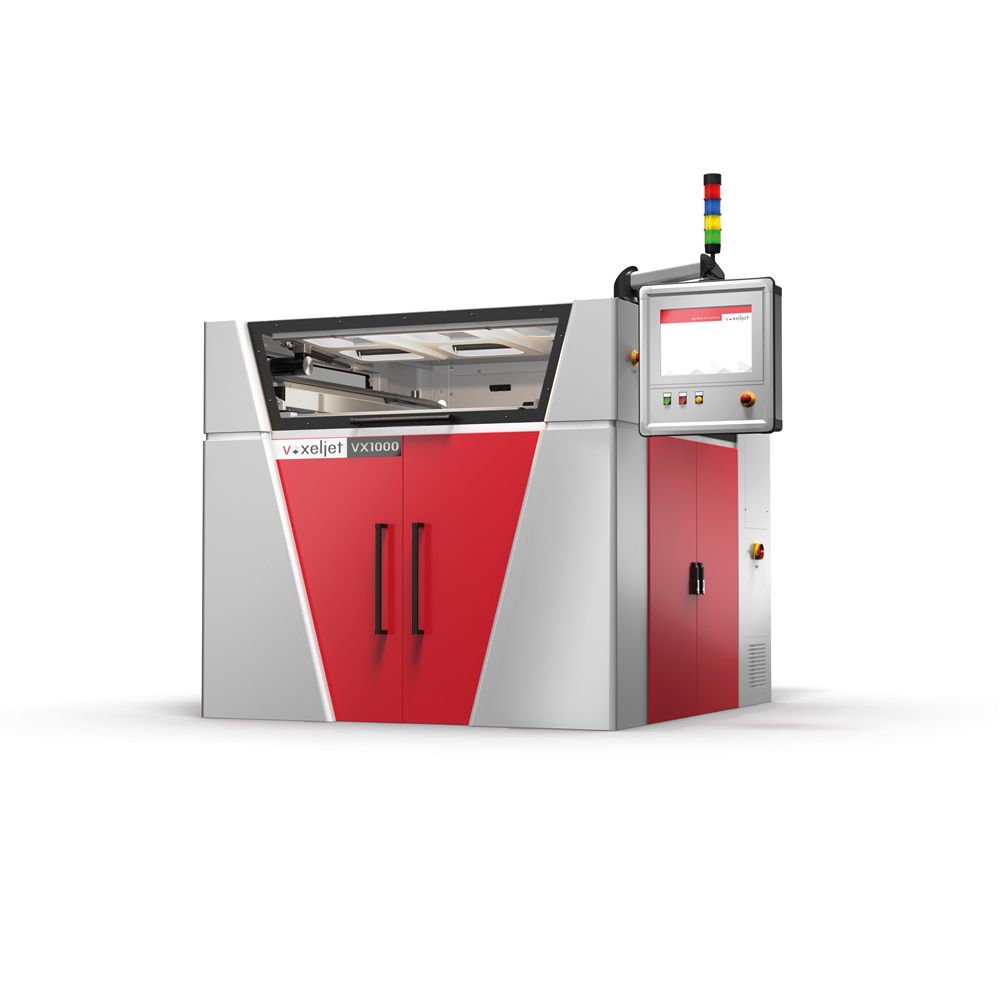

    Universal 3D printing system and international bestseller: the VX1000 is the productive all-rounder for industrial applications. From the cost-effective production of medium sized molds, to cores, models and prototypes – this 3D printing system can meet a wide range of complex demands. The VX1000 is also suitable for small series production. Uninterrupted printing processes ensure a high production capability. The VX1000 makes 3D printing with ceramic, plastic and sand even more flexible and easier to optimize.

    l   Sophisticated ergonomics concept for particularly comfortable operation.

    l   Universal 3D printing system for fast, economical production of medium-sized molds, cores and small series of parts.

    l   Precise details: Plastic models and sand or ceramic molds with high surface quality and up to 1,000 mm length.

    l   High resolution of up to 600 dpi.

    l   Perfect for research purposes, investment and sand casting.

    l   Economical and environmentally friendly: Depending on the configuration, unprinted material can be reused.

    l   Twice as economical: The rugged design is particularly durable.



    Specifications

    System Dimensions

    L 2,800 x W 2,400 x H 2,300mm

    Installation Space

    L 11,000 x W 8,000 x H 2,800mm

    Weight

    3500kg

    Process

    /PMMA

    Build Space

    L 1,000 x W 600 x H 500mm

    Print Resolution

    600 dpi

    Ambient temperature

    22 ± 2

    Rel. humidity

    55 ± 5%
