    VX200

    • Introduction
    • Specification
    • Download

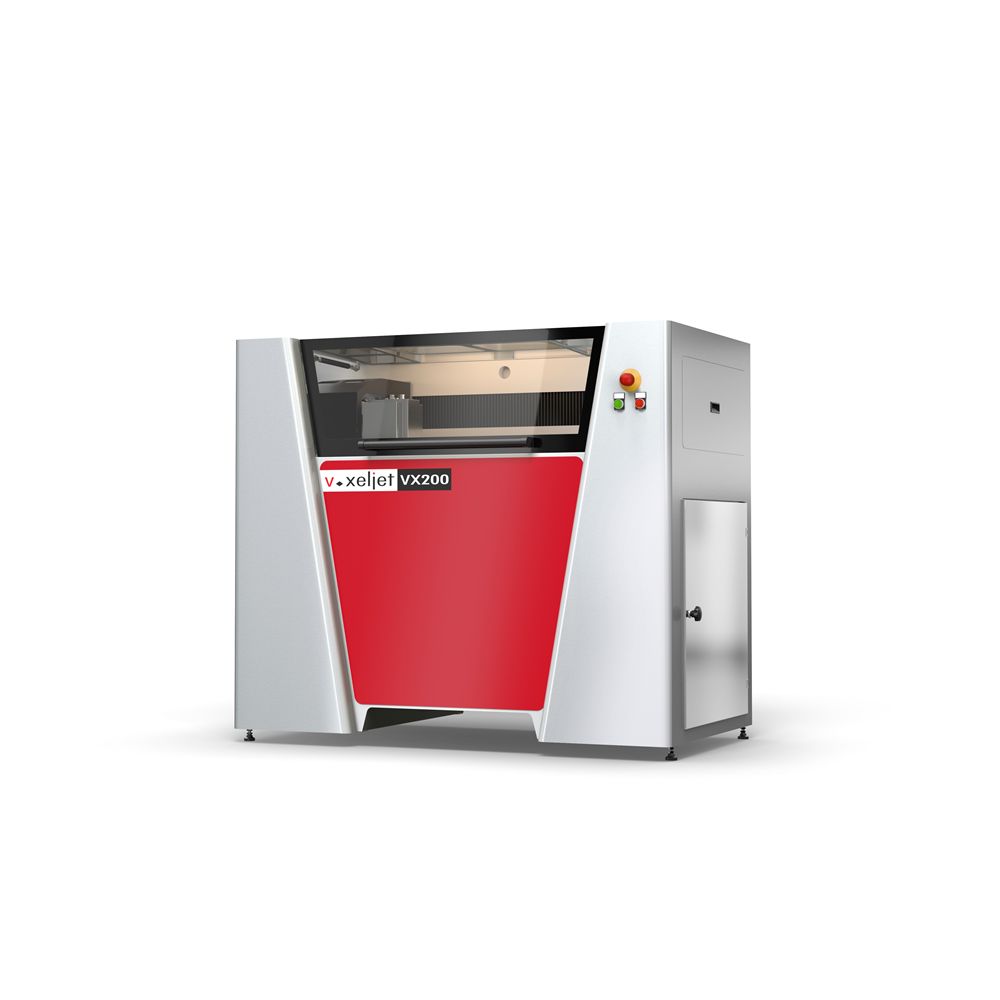

    One of voxeljet’s most compact 3D printing systems is the VX200. Thanks to its optimized dimensions this entry-level 3D printing system can easily be installed in smaller spaces. This is particularly beneficial for research and development. The VX200 prints small prototypes and design parts efficiently and is very easy to operate. Practical option: With voxeljet’s Open Source Program, various machine parameters can be individually adjusted to customize the printing process. This optimizes the interaction between printing system and material for 3D printing.

    l   Flexible system: Ideal for individual research purposes or material sets.

    l   Compact size: Perfect for industrial usage, even in small spaces.

    l   Easy to operate: Thanks to fully automated production.

    l   Tried and tested 3D printer: Fast, economic production of small molds and models.

    l   Perfect starter option: 3D printing for universities, research laboratories, etc.

    l   High resolution: A piezo print head system with a resolution of up to 360 dpi.

    l   Rugged 3D printing system: The design of the VX200 makes it durable and low-maintenance.



    Specifications

    System Dimensions

    L 1,700 x W 900 x H 1,500mm

    Installation Space

    L 3,500 x W 2,500 x H 2,000mm

    Weight

    450kg

    Process

    SAND/PMMA

    Build Space

    L 300 x W 200 x H 150mm

    Print Resolution

    300 dpi

    Ambient temperature

    22 ± 2

    Rel. humidity

    55 ± 5%
