SSAIL

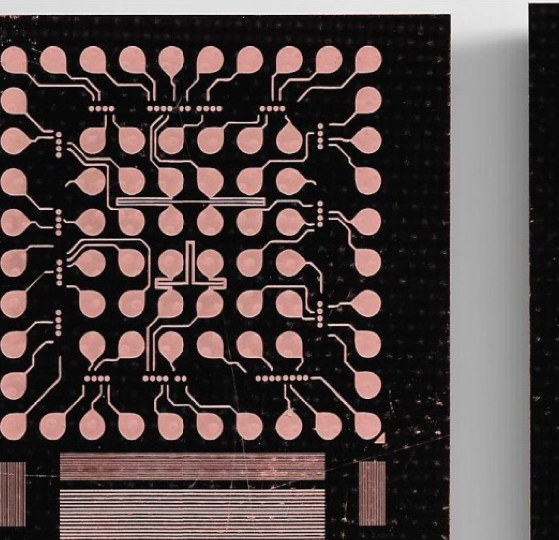

With a patented SSAIL technology conductive traces can be formed on many standard dielectric materials
(polymers, ceramics, glass, silicon). It enables tighter electronics packaging on flat or 3D surfaces (with traces down to 1 µm width),
making antennas directly on/in parts and creating functional surfaces.
download
AKONEER SSAIL
AKONEER Website: click here.
(polymers, ceramics, glass, silicon). It enables tighter electronics packaging on flat or 3D surfaces (with traces down to 1 µm width),
making antennas directly on/in parts and creating functional surfaces.
download
AKONEER SSAILAKONEER Website: click here.
- Introduction
SSAIL process:
Using SSAIL technology electrical traces can be used on different types of parts:
- 3D surfaces
- Thin films
- Flexible materials
- Through via plating
