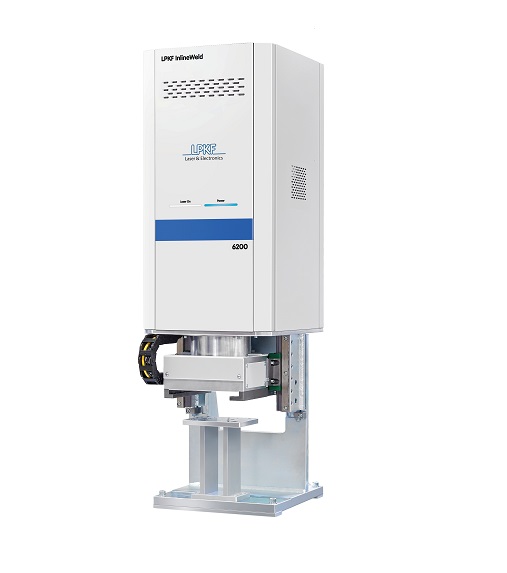

LPKF InlineWeld 6200
Download
LPKF InlineWeld 6200
For more details, please click here
- Introduction
|
LPKF InlineWeld 6200 Specifications |
|||
|
Model |
InlineWeld 6200(Basic) |
InlineWeld 6200(FineFocus) |
InlineWeld 6200(XL) |
|
Laser power / diode laser 980nm |
235W or 300W with air cooling |
160 W with air cooling |
235W or 300W with air cooling |
|
Working area |
100 mm x 100 mm |
100 mm x 100 mm |
150 mm x 150 mm |
|
Clamping unit |
Top-down, pneumatic (servo as option) |
||
|
Laser class |
Class 1- after integration with integrator |
||
|
Welding head dimension (W x D x H) |
400 mm x 450 mm x 1300 mm |
||
|
Control cabinet dimension (W x D x H) |
950 mm x 600 mm x 1350 mm |
||
|
Options |
Interface box for control, TherMoPro for thermographic process control feature |
||
